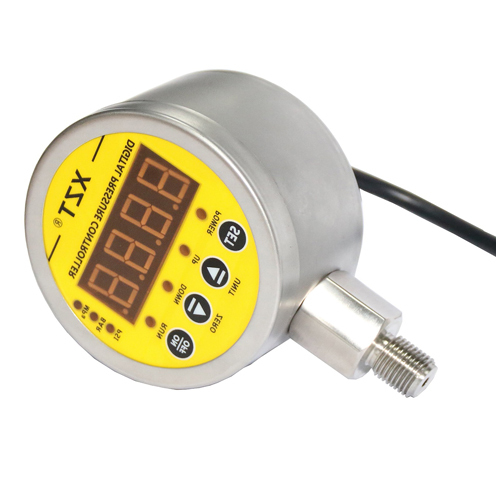

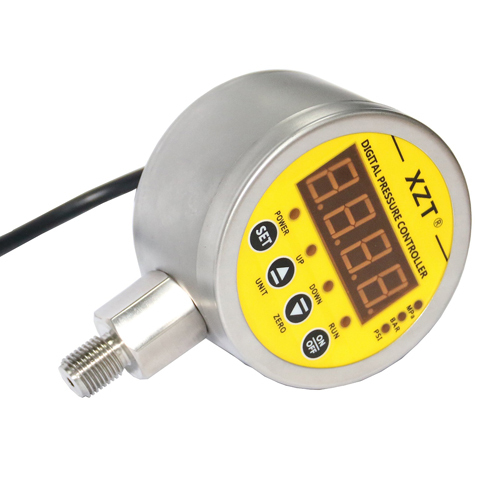

XZT 230PSI Digital Pressure Gauge

Get a Price/Quote

MOQ : 10 Pieces

XZT 230PSI Digital Pressure Gauge Specification

Seal Material
Silicone Rubber

Outer Size
72 mm x 31 mm

Grade
Industrial

Sensor Type
Electronic Pressure Sensor

Display
Digital LCD

Thread
1/4 NPT

Material
ABS Plastic Body, Stainless Steel Back

Dial Material
Polycarbonate Digital Panel

Processing Type
CNC Machined

Diameter
72 mm

Glass Size
Digital Screen, approx. 36 mm x 18 mm

Mount Type
Bottom Connection

Scale Range
0-230 PSI

Accuracy
1% FS

Finishing
Matte Black

Measure Pressure Of
Air, Water, Oil, Non-corrosive Gases and Liquids

Accessories
Protective Rubber Cover, Battery

Backlight
Blue LED Backlight

Ingress Protection
IP54

Auto Power Off
After 90 seconds of inactivity

Battery Life
Up to 12 months (typical use)

Unit Selection
PSI, Bar, kg/cm2, kPa

Sampling Rate
2 times/second

Power Supply
1 x 3V CR2450 Lithium Battery

Resolution
0.1 PSI

Weight
120 grams

Response Time
< 1 second

Operating Temperature Range
-10C to 60C

Overpressure Limit
300 PSI maximum

XZT 230PSI Digital Pressure Gauge Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About XZT 230PSI Digital Pressure Gauge

The XZT 230PSI Digital Pressure Gauge offers an optimum blend of precision and durability, making it a masterpiece in industrial measurement. This featured device operates reliably between -10C and 60C and includes an astonishing range of selectable units: PSI, Bar, kg/cm2, and kPa. Its CNC-machined body, IP54 ingress protection, and digital LCD with vibrant blue LED backlight ensure longevity and clarity. Highly recommended for service providers and suppliers in India, the gauge delivers extraordinary accuracy (1% FS) and robust performance for air, water, oil, and non-corrosive gases and liquids.

Versatile Advantage Across Plant and Industrial Applications

The XZT 230PSI Digital Pressure Gauge is the optimum solution for monitoring pressure in various plant environments. Its robust construction and high precision make it ideal for applications in manufacturing plants, water treatment units, and process industries. This masterpiece is also suitable for laboratories, HVAC maintenance, and general industrial use. Its quick response time and stability enable continuous, reliable readings for control and safety purposes, supporting diverse operational needs beyond plant boundaries.

Seamless Sample Policy, Delivery, and Purchase Process

Sample requests for the XZT 230PSI gauge can be initiated via a formal Purchase Order. Standard transportation practices ensure safe, prompt delivery within 3-7 business days after order confirmation, minimizing additional expenditure. Payment terms typically include advance payment or agreeable credit arrangements, in accordance with supplier policies. The streamlined sample policy simplifies acquisition, especially for traders, wholesalers, and service providers seeking efficient evaluation before large-scale purchase and long-term deployment.

FAQ's of XZT 230PSI Digital Pressure Gauge:

Q: How does the XZT 230PSI Digital Pressure Gauge ensure precise measurements?

A: The gauge employs an electronic pressure sensor with 1% FS accuracy, coupled with a digital LCD and fast response time (<1 second), ensuring every measurement is reliable and clear.

Q: What applications are most suitable for the XZT 230PSI Digital Pressure Gauge?

A: It is designed for use in industrial plants, service environments, laboratories, HVAC maintenance, water treatment units, and for measuring air, water, oils, and non-corrosive gases and liquids.

Q: When does the auto power-off feature activate on this device?

A: The XZT gauge automatically powers off after 90 seconds of inactivity, helping conserve battery life and reducing unnecessary expenditure.

Q: Where can this digital pressure gauge be mounted?

A: It features a bottom connection design with a 1/4 NPT thread, making it compatible with various industrial setups and mounting points.

Q: What is the process to request a sample of the XZT 230PSI Digital Pressure Gauge?

A: You can request a sample by submitting a Purchase Order to the supplier or service provider, who will then arrange transportation and delivery as per agreed terms.

Q: How does the blue LED backlight benefit users?

A: The blue LED backlight enhances visibility in low-light conditions, allowing users to read measurements easily and accurately even in dim environments.
